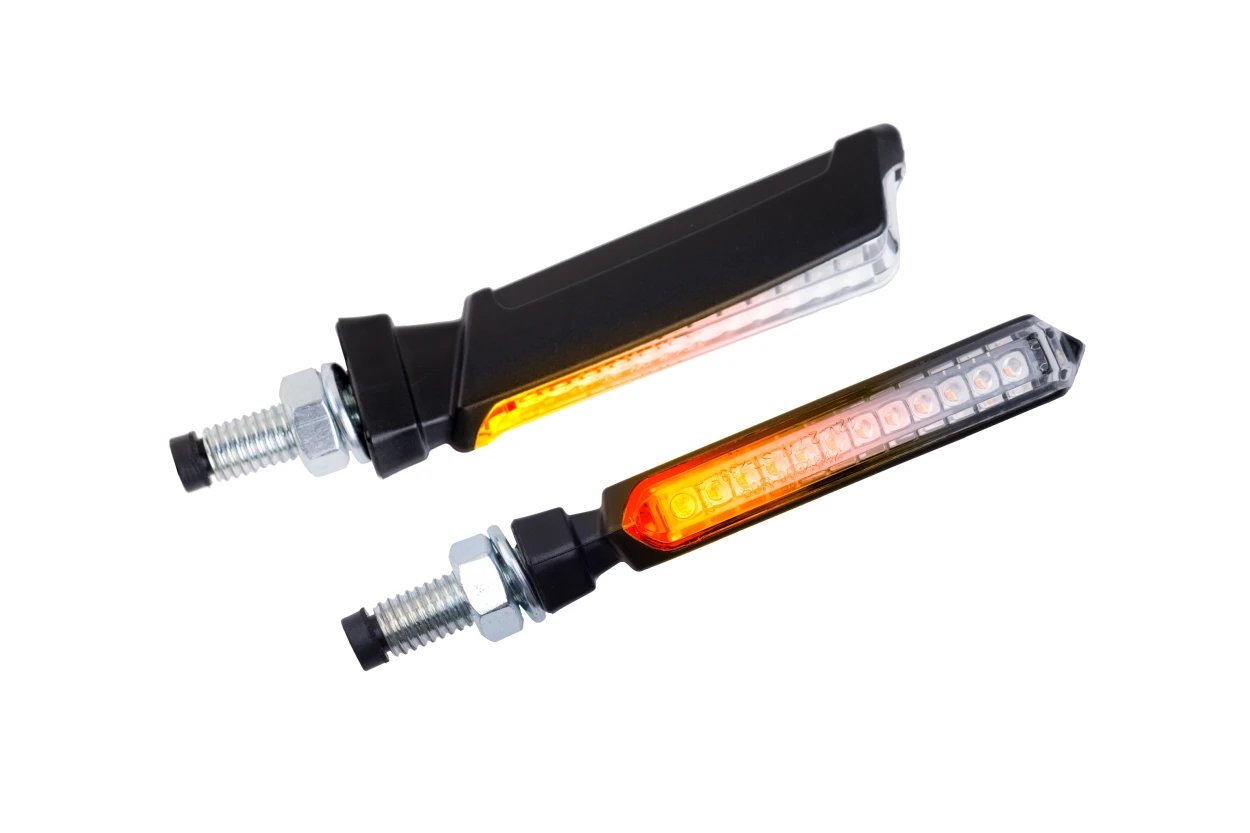

Thin Turn Lights

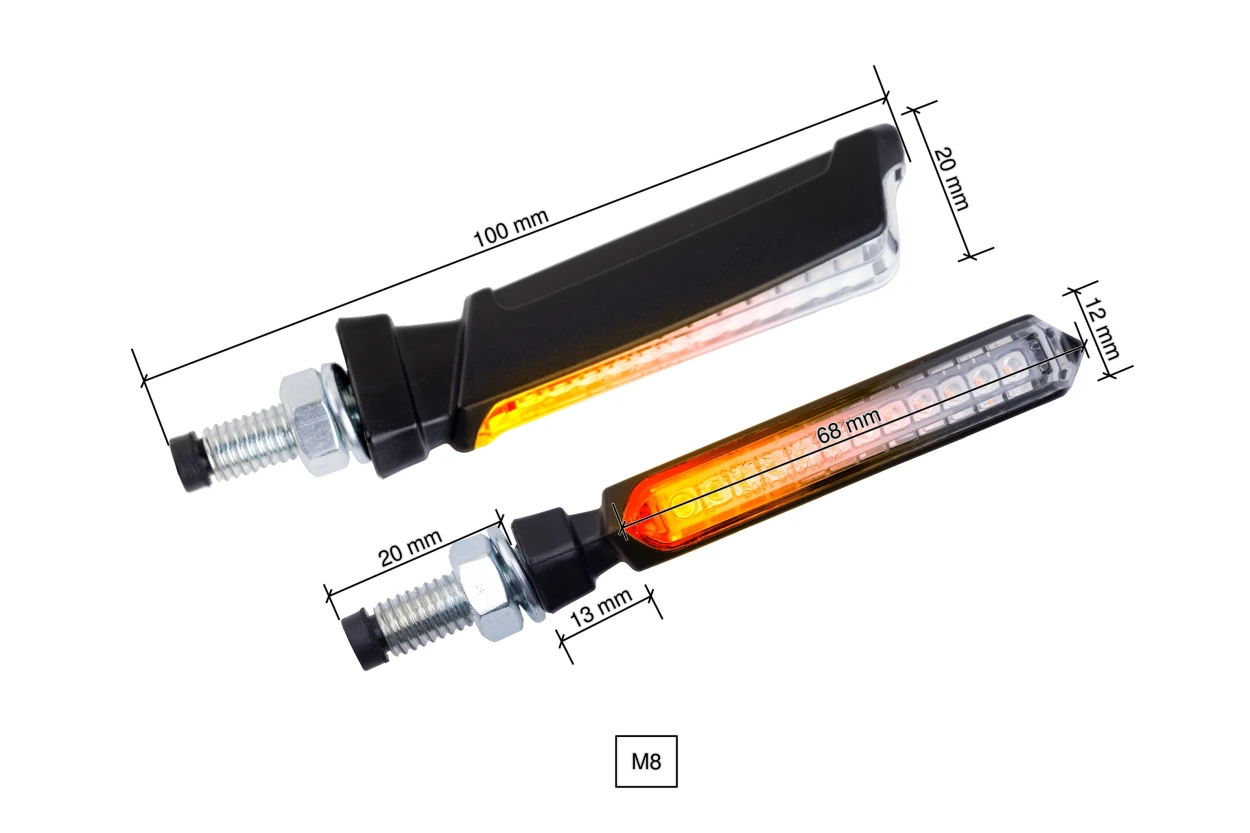

Puig progressive turn signals are the latest trend for motorcycle customization. They are small in size (THIN 76x27.40mm) and their clear lenses give them an appearance that complements and enhances the aesthetics of the motorcycle.
Their progressive blinking effect in addition to offering an attractive look, attracts more attention when activated, which improves visibility over conventional turn signals.
To install our turn signals, you can do it using relays or resistors.
Installation with resistors
Mount a resistor in parallel in the right circuit and another one in the left. If we change the four turn signals, it is necessary to use the resistor ref. 4298O. If only two are changed (front or rear), use resistance ref. 5873O. The resistors are supplied with a diagram to make the installation correctly.
Note: in some motorcycle models, the warnings are disabled if the resistors are used.
Installation with relays
Identify the motorcycle's flasher relay (location and number of pins) and replace it with the corresponding one.
On most motorcycles, the warnings work correctly when the relay is replaced.
Note: we can find in the motorcycle market where the relay performs more functions apart from intermittence, obviously, in this case it cannot be replaced, so we will have to choose option 1.
Tested on:
-Honda CBR650R 19'-21'
180mm set it is delivered
Wiring with connector OEM
Cable length: 300mm
Black REF. 20730N Under development
Wiring with connector OEM
Cable length: 300mm
Black REF. 20791N Under development
Black REF. 20760N Under development
Wiring with connector OEM
Cable length: 300mm
Black REF. 20731N Under development
Black REF. 20554N Under development
Black REF. 20546N Under development
Wiring with connector OEM
Cable length: 300mm
Black REF. 20791N Under development
Black REF. 20760N Under development
