Racing Screen
YAMAHA FZ1 FAZER 2009

Select a bike

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7

General information

Dimensions (Height x Width): 410 x 300 mm

Thickness: 3 mm

Smoke
REF.4061H
$108.22
Dark Smoke
REF.4061F
$108.22

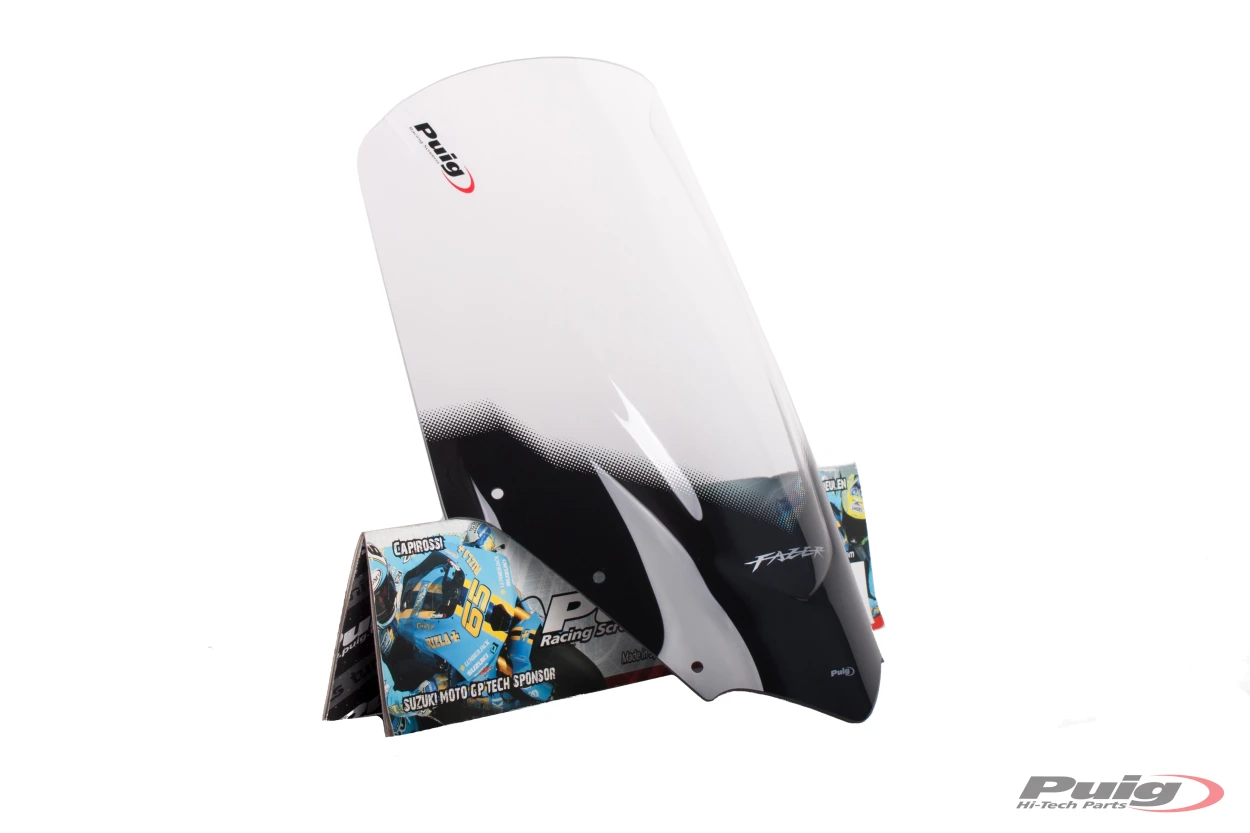

Clear
REF.4061W
$108.22

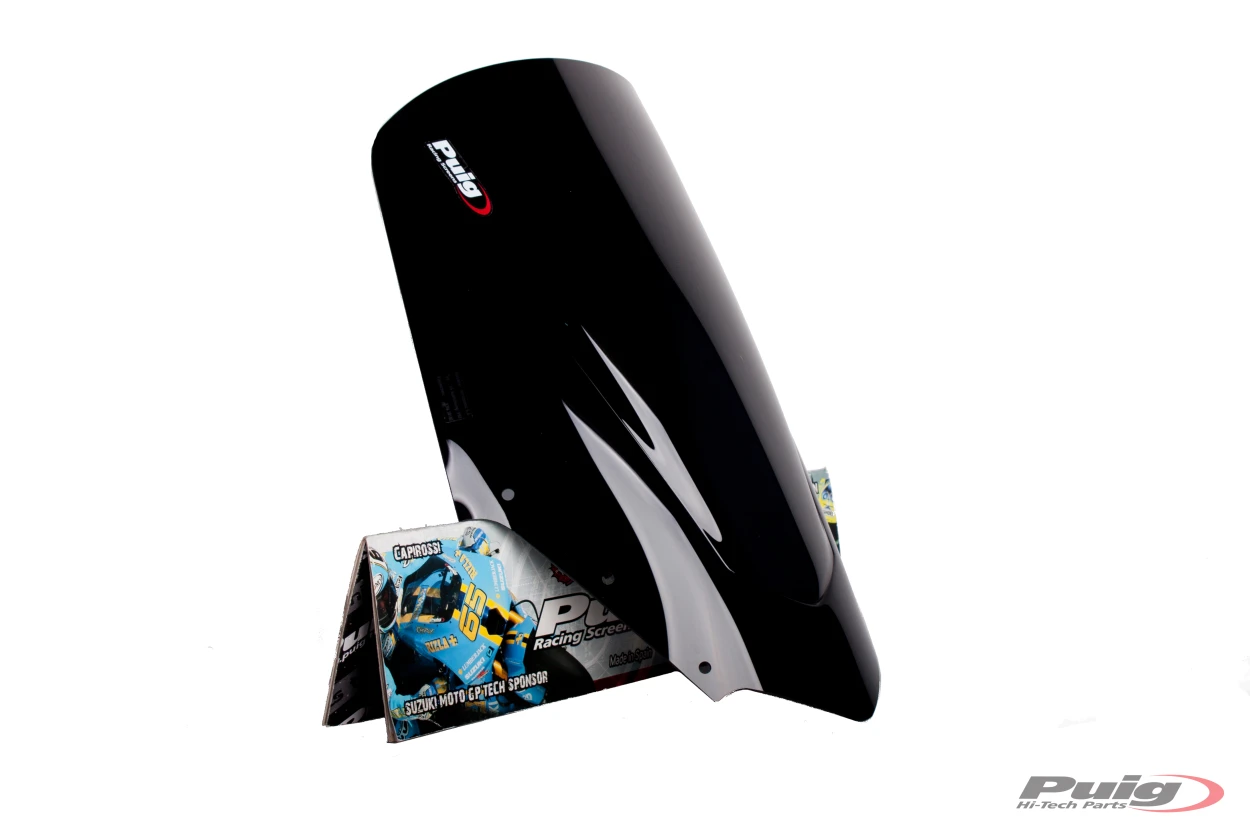

Black
REF.4061N
$108.22

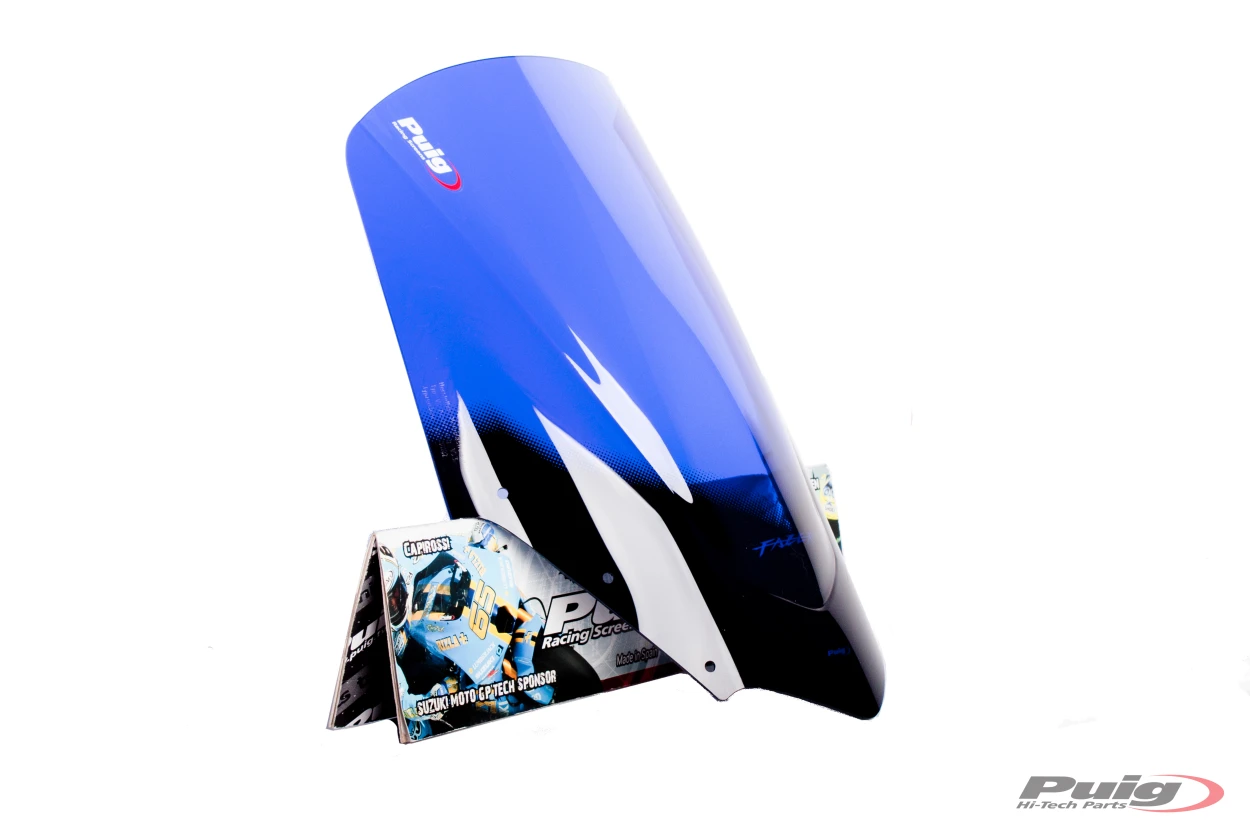

Blue
REF.4061A
$119.05

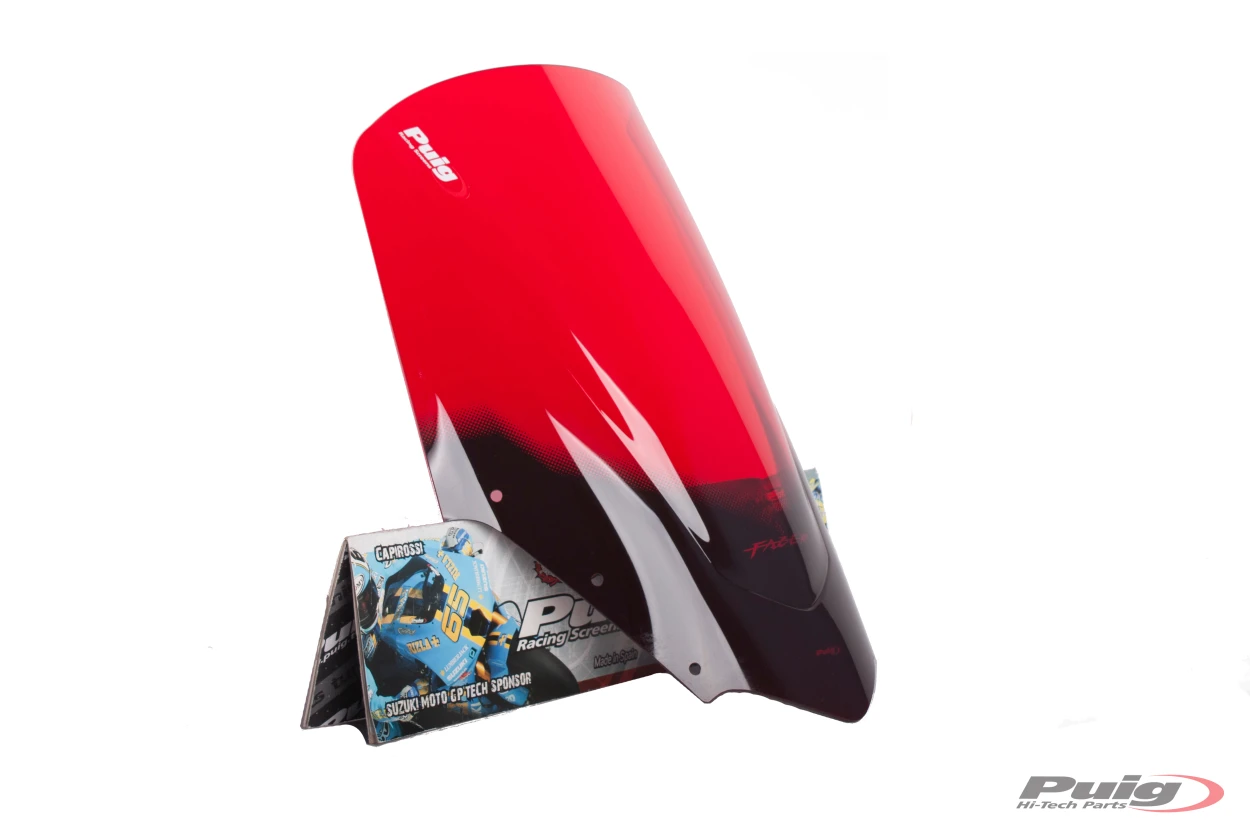

Red
REF.4061R
$119.05

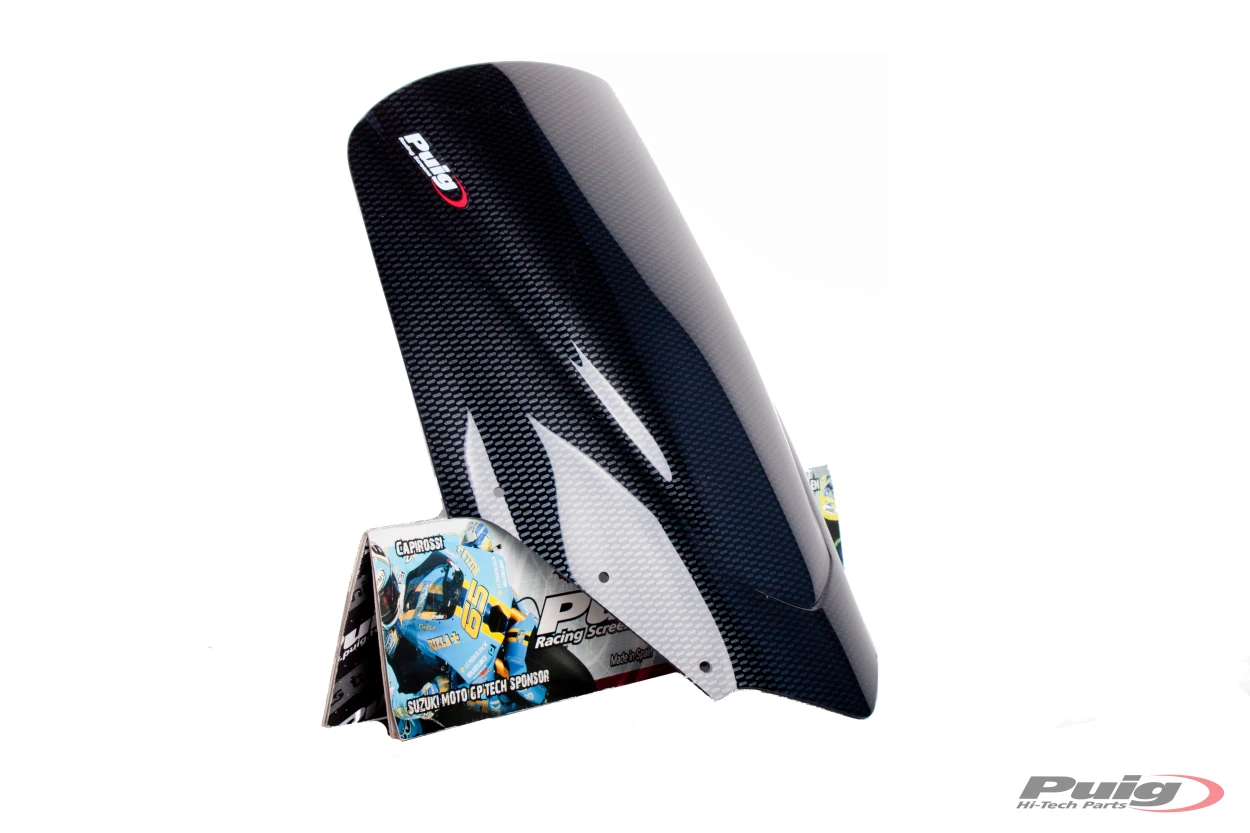

Carbon look
REF.4061C
$119.05

Give your bike the competitive character you've always looked for with the Puig Racing screen.
Manufactured in 3mm high impact acrylic, resistant and long-lasting material rounded to> 2mm (complying with German TÜV regulations), thanks to its double height, the effect of air hitting on the helmet will be greatly reduced. This screen is available in two models: Z-Racing and R-Racer, depending on the model.

The design of the Z-Racing screen has been tested in the wind tunnel, improving the aerodynamic coefficient and the protection against wind gusts by 12.7% (upright position) with respect to the original model and by 61% in racing position.

On the other hand, the R-Racer screens, apart from being studied in the wind tunnel, are developed together with racing teams from the SBK World Championship and Endurance, achieving a perfect balance between protection and aerodynamics.
The assembly of the piece does not require modifications and is accompanied by an exhaustive aerodynamic study.

Check if the part number is homologated by the German KBA and if it is already included in the homologation in the DOCUMENTS section.

Documents

Technical features

ABE 38182
General circulation license (ABE) to drive the product on public roads
PMMA
Manufactured in thermoplastic polymer​
MODELO VS3
Model
TÜV
The product meets all the requirements of the German certification organization TÜV.​
AERODINAMICO
Aerodynamic
PERFIL REDONDEADO
Round Edge​
RESISTENTE UV
UV resistant​

How to mount this product
